50 CFM, Tsunami 1/2" NPT Industrial Combination Water Separator Particulate Filter & Coalescing Oil Removing Filter

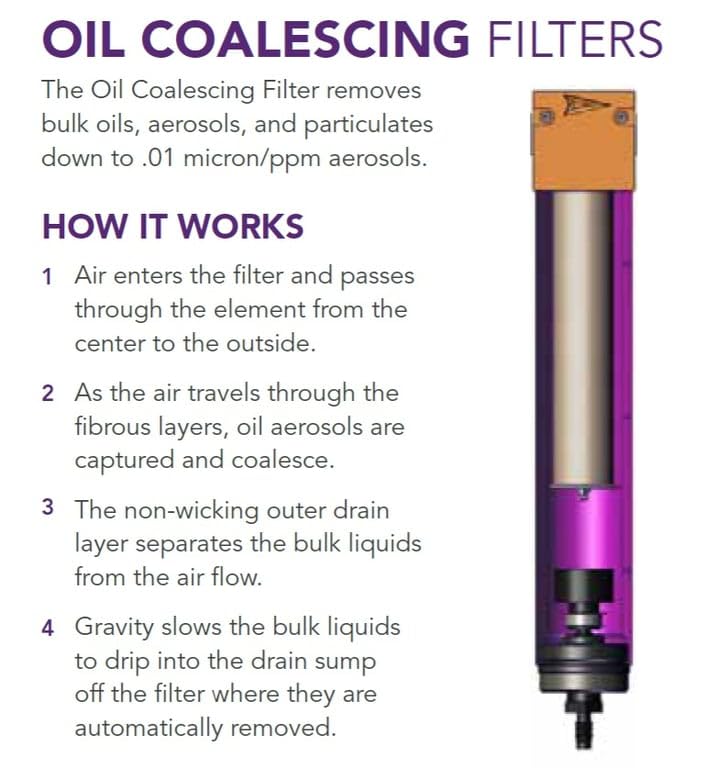

Tsunami Filtration Package 3 includes: (1) Water separator, (1) Oil coalescing filter and a mounting bracket. Tsunami filters are machined from the highest quality materials and are anodized inside and out to ensure ultimate durability against corrosion and trapped contaminates. The Tsunami Water Separator removes water, up to one quart per minute, and filters particulate down to 10 micron. The Oil Coalescing Filter removes oil aerosols down to .001 ppm and particulates down to .01 micron. HOW STAGE 1 WORKS: 1: Air enters the filter & travels down a small diameter tube causing an increase in velocity. 2: The air reaches the bottom of the inner tube then is redirected 180 degrees up the outer tube allowing gravity and a slower velocity to capture bulk liquids. 3: Velocity increases again as air is forced through small orifice baffles before entering the stainless steel mesh element. 4: Centrifugal force is used to capture any remaining liquids before exiting the filter. 5: Liquids are automatically ejected through the drain. HOW STAGE 2 WORKS: 1: Air enters the filter and passes through the element from the center to the outside. 2: As the air travels through the fibrous layers, oil aerosols are captured and coalesce. 3: The non-wicking outer drain layer separates the bulk liquids from the air flow. 2: Gravity slows the bulk liquids to drip into the drain sump off the filter where they are automatically removed. Features: Machined from 6061 aircraft aluminum. Minimal maintenance required with easy-to-service float drain. Made in America. Benefits: Point-of-use protection for air tools and pneumatic equipment. Removes large amounts of moisture. Filters particulate down to .01 micron at 99.9% efficiency.

• Stage 1: 1/2" NPT, Tsunami Particulate Filter Water Separator Removes Bulk Liquids and Water From Compressed Air Lines, Filters particulate down to 10 micron at 99% efficiency
• Stage 2: 1/2" NPT, Tsunami Oil Coalescing Filter Removes Oil Aerosols From Compressed Air Lines. Removes oil, oil mist and particulates down to .01 micron at 99.9% efficiency
• 250 PSI Max, 50 CFM Flow Rate, Max 175 Degree Temperature, 18" Height, 6.5" Width, 5" Depth. Includes Internal Float Auto Drain
• Filter heads machined from 6061 Aircraft Aluminum, Oversized tube length allows both gravity and velocity to assist in the removal of water and air contaminates
• Removable bottom cap provides ease of service and machined drain port provides various drain capabilities
