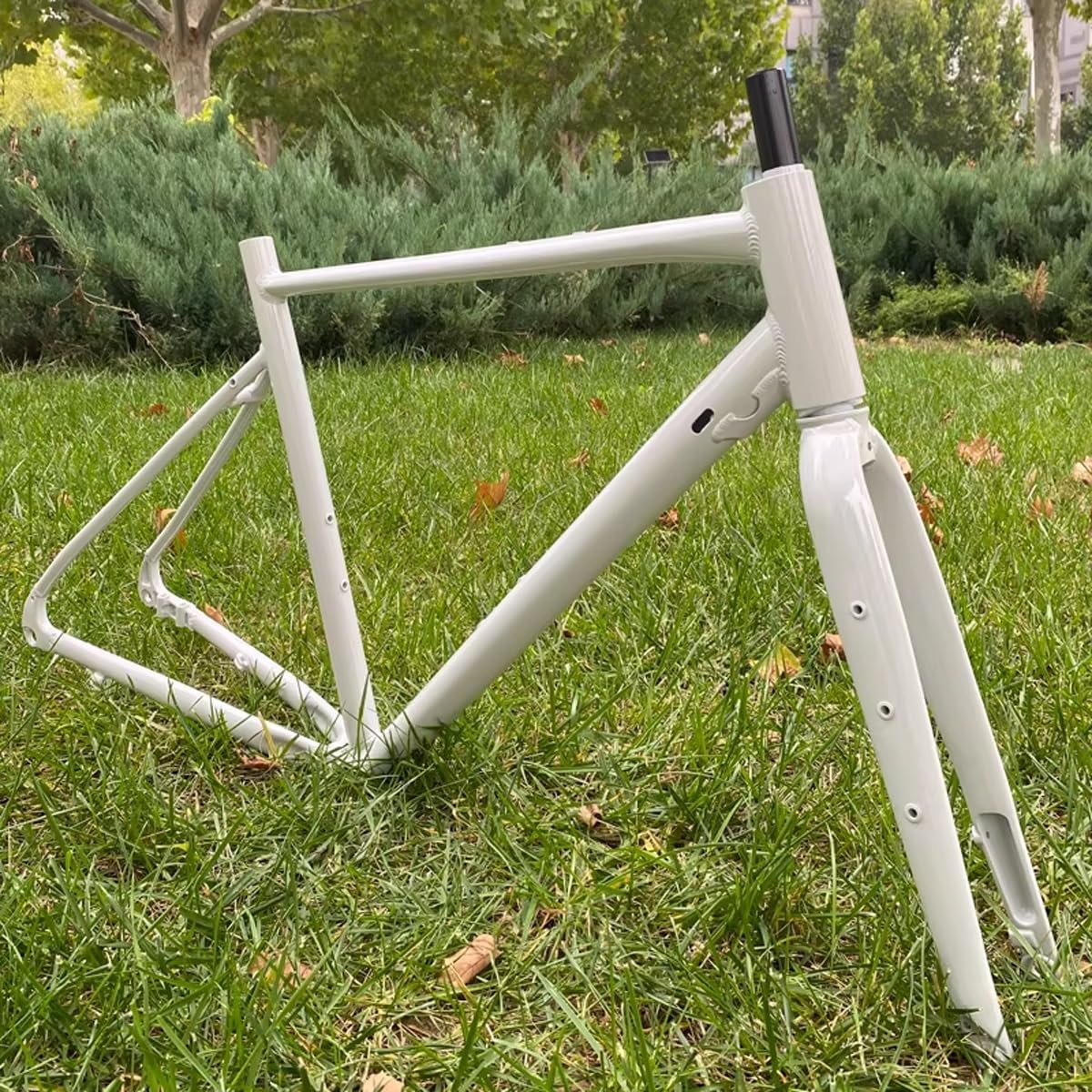

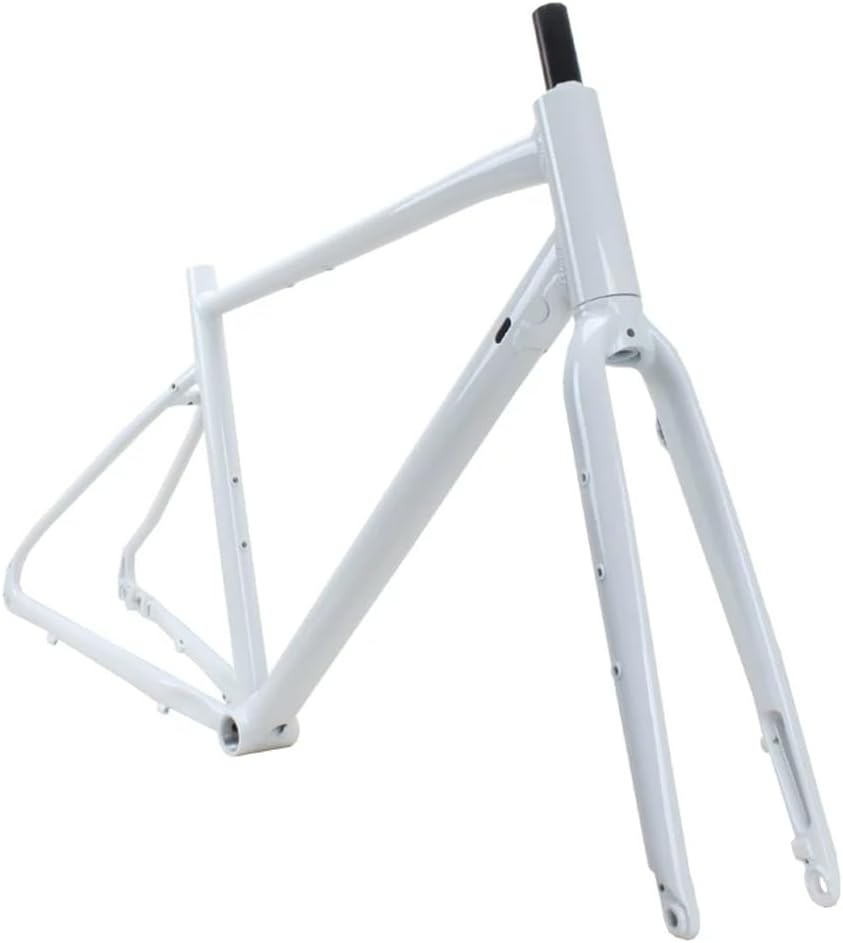

700C Gravel Road Bike Frameset 47cm 52cm Disc Brake Aluminum Alloy Bicycle Frames Cyclocross Bike Frame with Fork Semi-Internal Routing Thru Axle 100/142mm
Product details
| Management number | 221665031 | Release Date | 2026/05/03 | List Price | US$105.19 | Model Number | 221665031 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

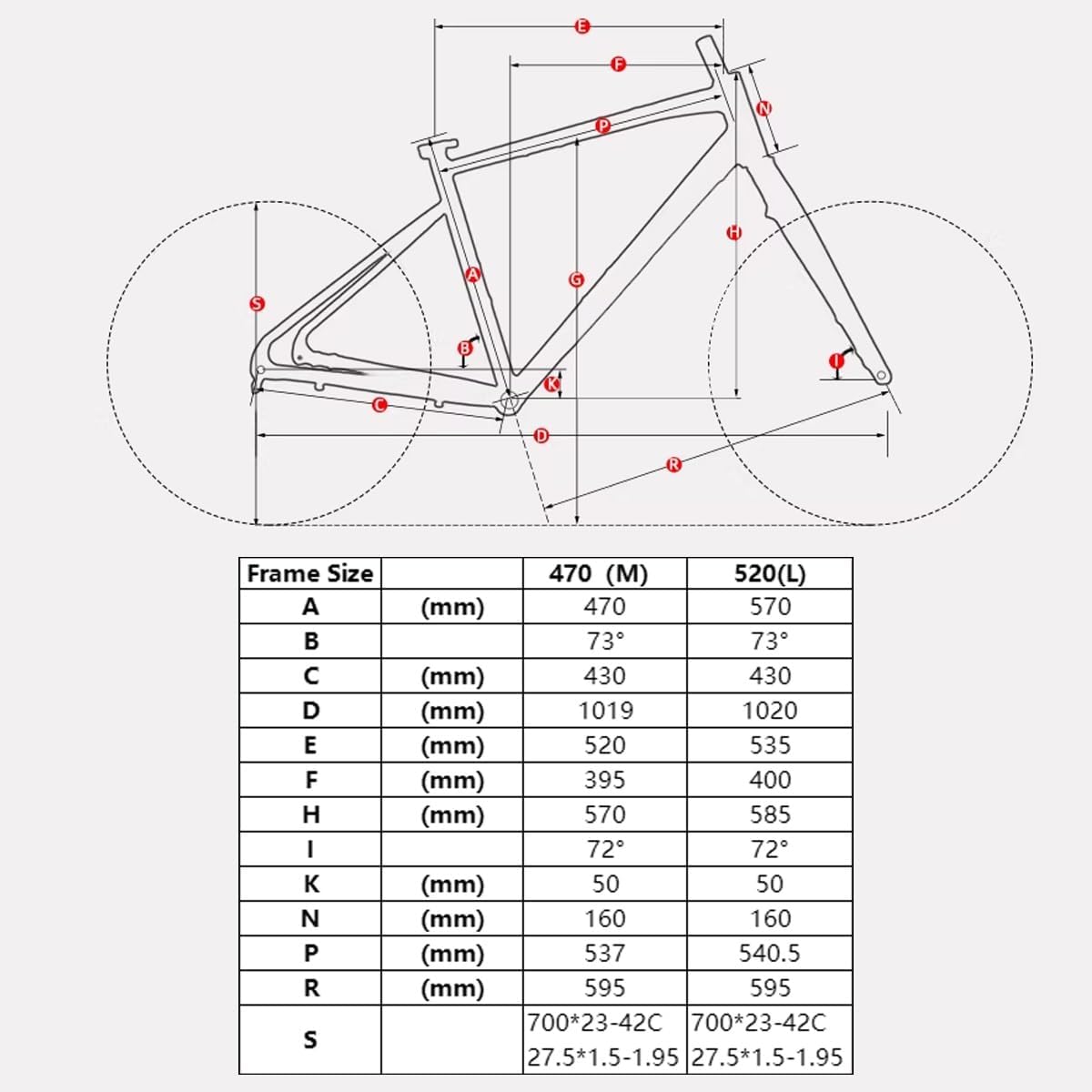

700c Gravel road bike frameset 47cm 52cm Aluminium Alloy Disc Brake Frame with fork Thru-Axle 100/142mm Semi-Internal RoutingFrame Size:47cm 52cmFrame Material: 6061 Aluminum AlloyColor: Rose Gold , Black , White , Blue-Gray , Concrete GrayCable:Semi-Internal RoutingHead tube: 44mmSeatpost: 27.2mmSeatpost clamp:31.8mmRear Spacing:142mmFork Spacing:100mmBottom Bracket: BSA68mmFrame Weight: about 1820gCompatible Crankset: Minimum 32 teeth, maximum 52 teethWheel Set: Supports 700x23-42C/27.5x1.50-1.95 tire widthBraking: Flat-mount disc brakes, front 160mm / rear 160mmDisc brake caliper center distance: Front 70mm / Rear 34mmFork rack mount holes: 64mm (3 sets total)Frame bottle cage mounts: 64mm center-to-center spacing (4 sets total)Thru axle lever: Front 122mm M12*P1.5/Rear 162mm M12*P1.5Fork Specifications:Wheel size: 700CFork Material: Upper tube fork uprightcarbon steel/Lower leg 6061 aluminum alloyVertical pipe diameter:28.6mmSteerer tube: 240mmFit hub old:100mmAdapt to tire width:56mmTire clearan:49mmBrake: Flat-mount disc brakesWeight: 950gPackaging: Frame,Fork,Thru axle lever,Tail hook,Headset,Seatpost clampNote: Please check if the size of bikes frame is correct before purchasing.
- 【Gravel Road Bike Frame】: 47cm 52cm Road bike frameset, Cyclocross Disc Brake Frame, Frame weight about 1820g, fork about 950g.

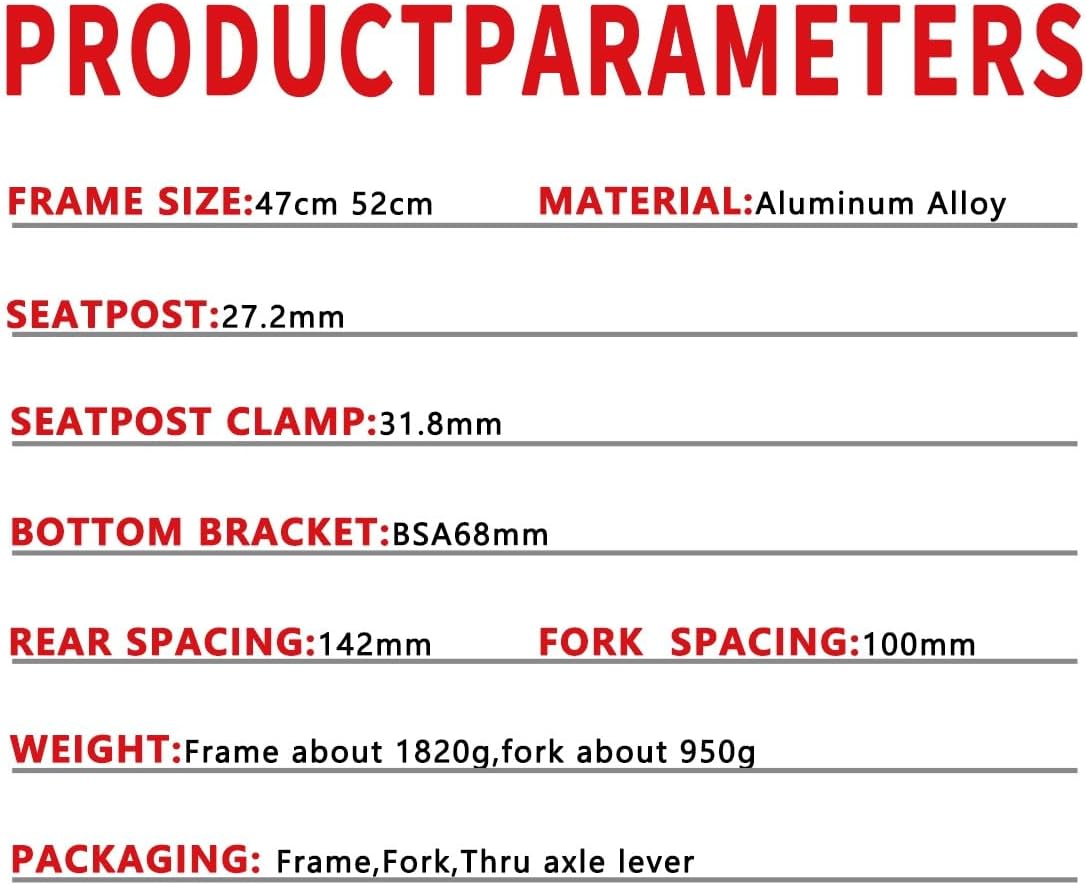

- 【Specifications】: 44mm head tube, 27.2mm Seatpost, 31.8mm Seatpost clamp, BSA68mm thread bottom brackets. Rear Spacing 142mm, Fork Spacing 100mm. Supports 700x23-42C/27.5x1.50-1.95 tire width.

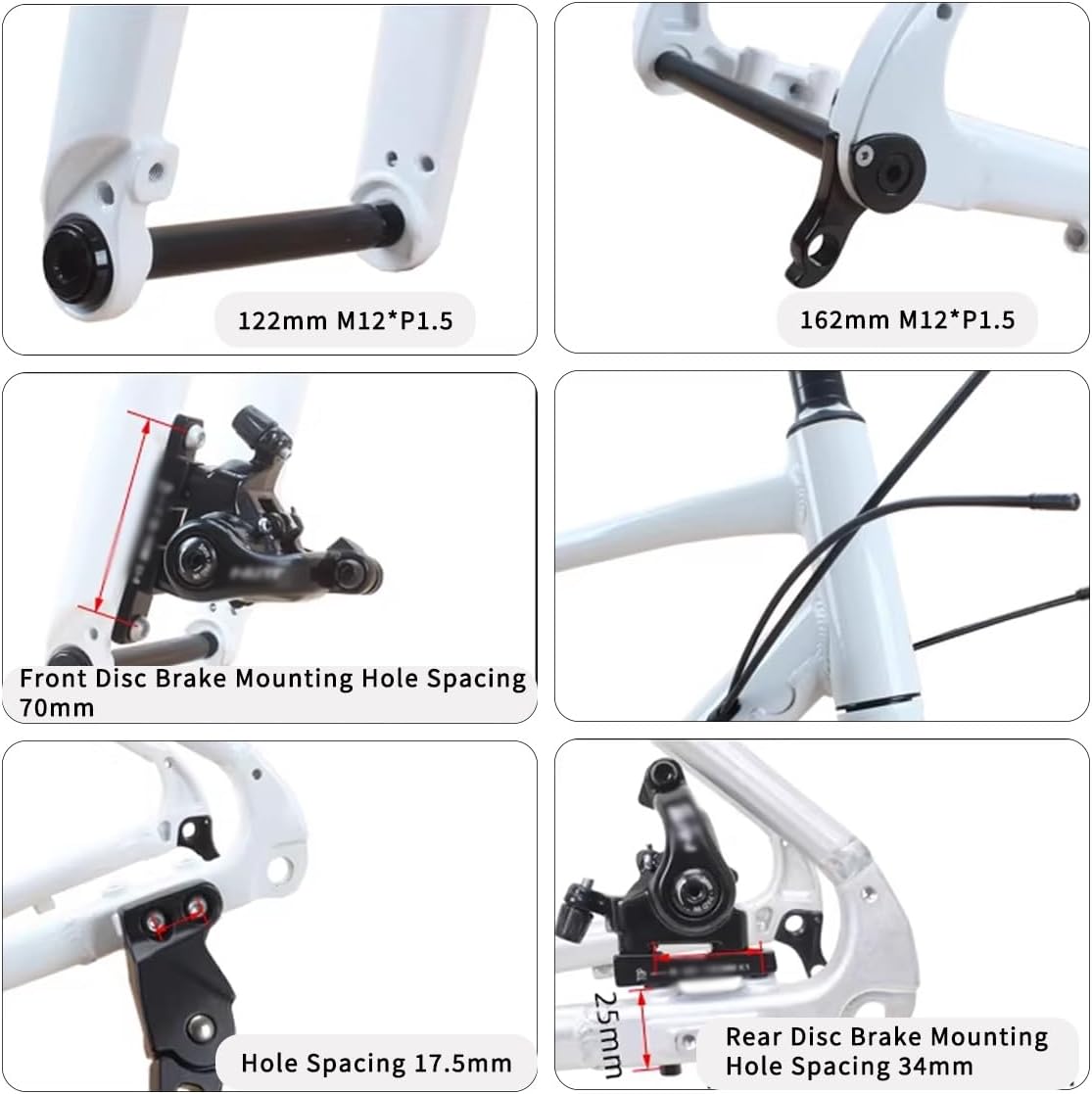

- 【Disc Brake Bikes Frame】: Flat-mount disc brakes, front 160mm/rear 160mm. Disc brake caliper center distance Front 70mm/Rear 34mm. Semi-Internal routing frames.
- 【Aluminium alloy frames】: 6061 Aluminum alloy frame, Cyclocross Bike Frames crafted from lightweight aluminium alloy for an enhanced riding experience. Fork material upper tube fork uprightcarbon steel/Lower leg 6061 aluminum alloy.
- 【Packaging】: Frame,Fork,Thru axle lever,Tail hook,Headset,Seatpost clamp. Please double check the parameters you need for your Bicycles Frame before ordering.
| Size | 52cm |
|---|---|
| Color | Concrete Gray |
| Material | Acrylic |
| Brand Name | HWEVDHJ |
| Model Name | HWEVDHJ001 |
| Part Number | HWEVDHJ001 |
| Manufacturer | HWEVDHJ |
| Package Weight | 5000 Grams |
| Suggested Users | unisex-adult |
| Item Package Dimensions L x W x H | 43.31 x 21.65 x 9.84 inches |
