Annaloi 36V EZGO Solenoid Relay Kit for EZGO Electric Golf Cart - 70 Series, Continuous Duty with Resistor & Diode - Replaces 27855G01, 11761G1, 27855G02, 31680G1
US$8.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.woodbury.org.au
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$8.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.woodbury.org.au
Free 30-day returns Details
Product details
| Management number | 224817616 | Release Date | 2026/05/09 | List Price | US$8.80 | Model Number | 224817616 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

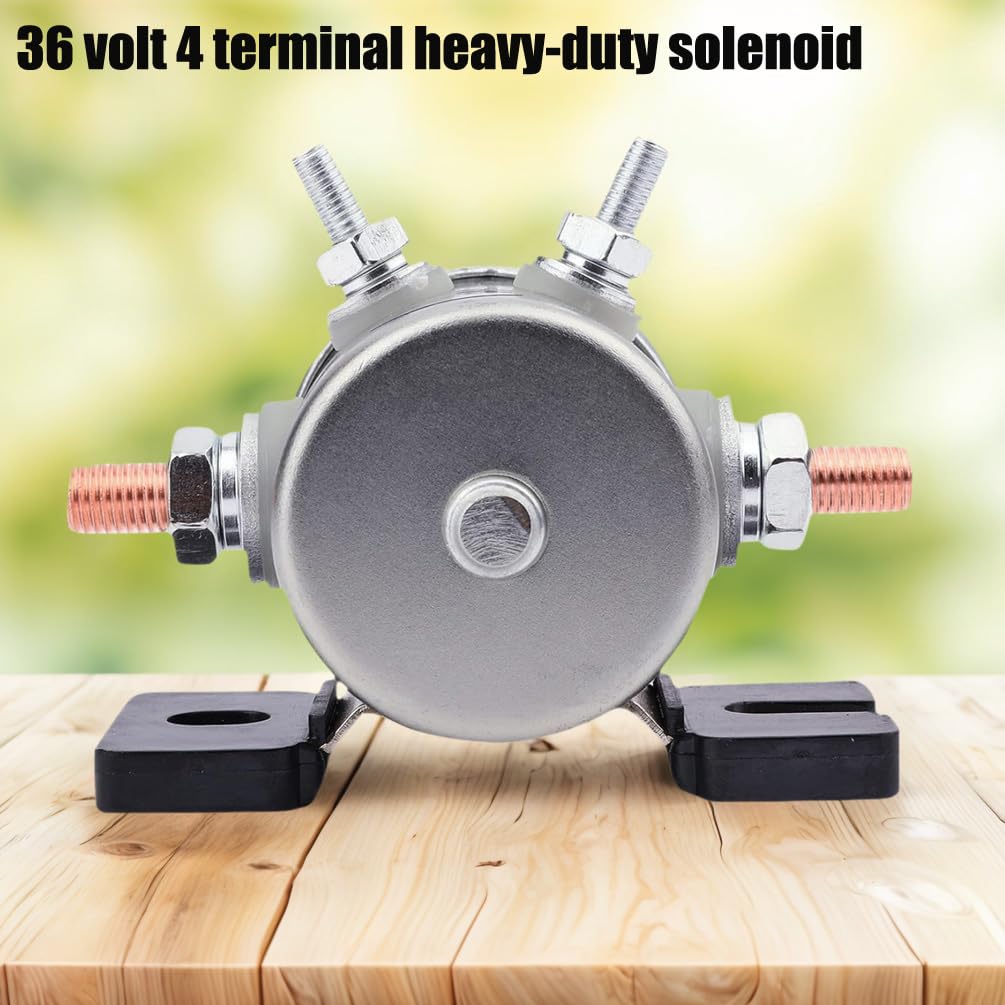

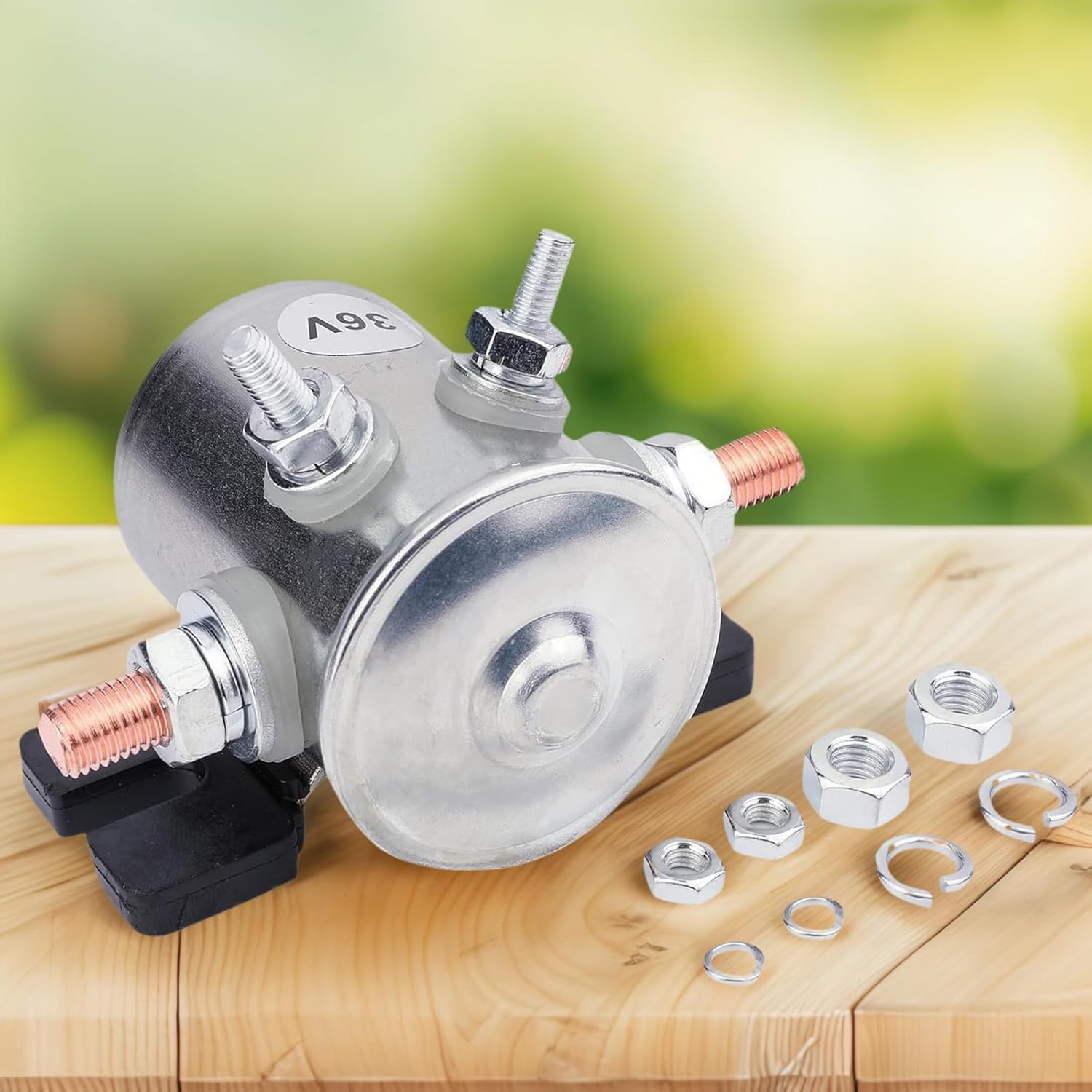

- EZGO 36 volt solenoid Voltage 36 Volt,4 terminal Heavy-duty Solenoid with Copper Contacts,Flat Mounting Bracket
- 36V EZGO Solenoid Replaces Part Number: 70-120224, 3016, 11761-G1, 27855-G01, 27855-G02, 31680-G1,Cole Hersee 24080, E-Z-Go 11761GA
- NOTE: Package also includes Resistor and Diode, No need to purchase separately. All Parts Apply For Marathon Ezgo TXT Series ,1980-2010 Electric Golf Cart
- 27855g01 Solenoid Compatible With Columbia Par Car 71468-85, Melex 300668, Legend 7-3668, Pargo 318 3016 8427, Karrior 704-00, Otis A-11004, Shuttlecraft 95-0079, etc.
- Resistance is 18Ω,Max Transient current can be 200A, but Continuous Working Current recommend 80amp/ Dimensions : 2) 5/16-24 Contact Terms/ 2) 10-32 Terminal/ Mounting holes: 5/16 x 19/32, 2-13/64 on centers
| UPC | 750388862744 |
|---|---|
| ASIN | B0C2MR87QP |
| Wattage | 72000 watts |
| Brand Name | Annolai |
| Part Number | 27855-G01 27855-G02 |
| Coil Voltage | 36 Volts |
| Contact Type | Normally Open |
| Manufacturer | Annolai |
| Mounting Type | Panel Mount |
| Connector Type | Proprietary |
| Current Rating | 200 Amps |
| Operation Mode | Electric |
| Coil Resistance | 18 Ohms |
| Contact Material | Copper |
| Specification Met | UL |
| Contact Current Rating | 80 Amps |
| Maximum Switching Current | 80 Amps |
| Minimum Switching Voltage | 36 Volts |
