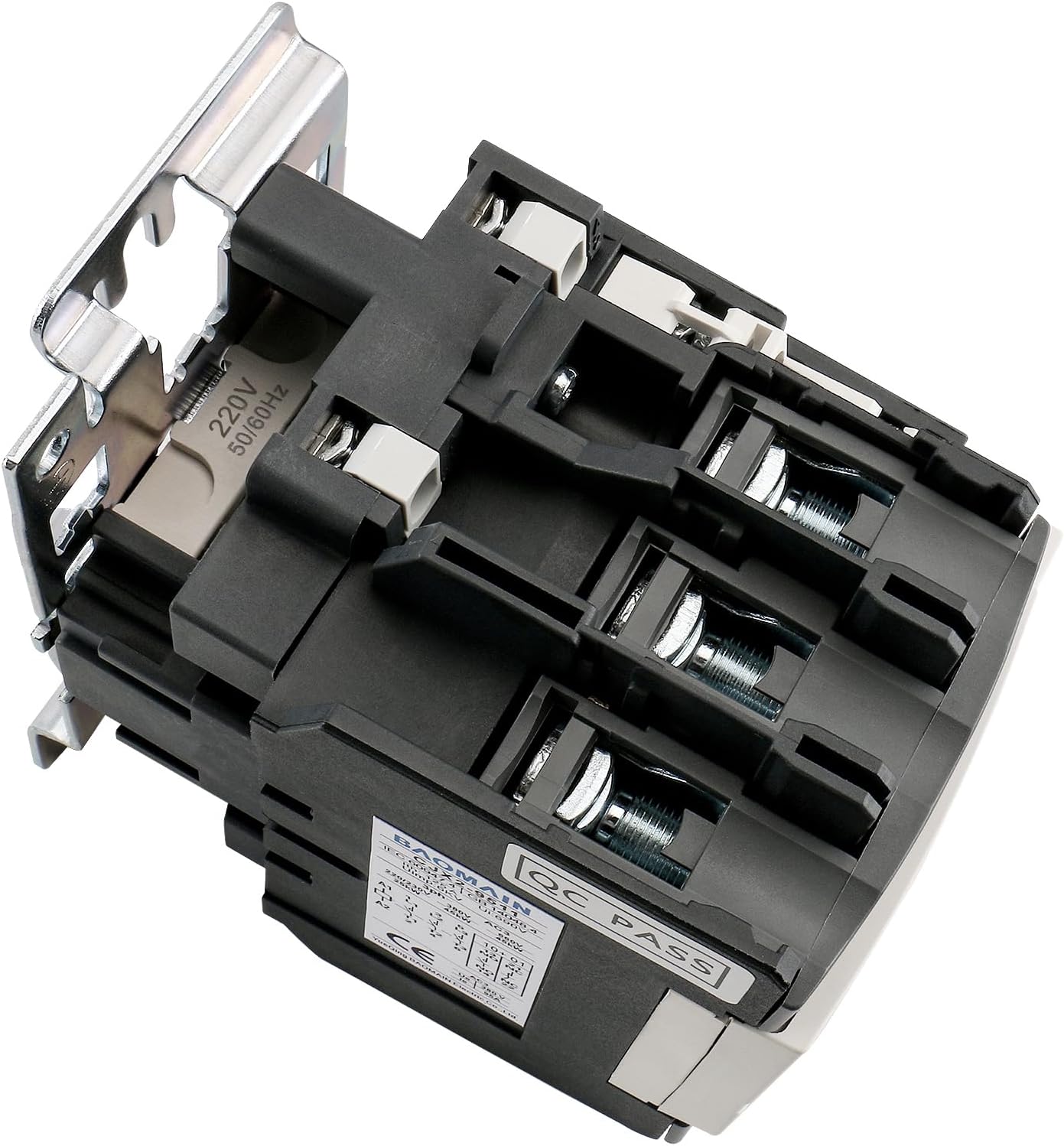

BAOMAIN CJX2-9511 AC Contactor 220V Coil 3-Phase 3-Pole Heavy Duty Motor Starter Switch 95A Ie 125A Ith 1NO+1NC Auxiliary Contacts for Industrial Electrical Circuit Control

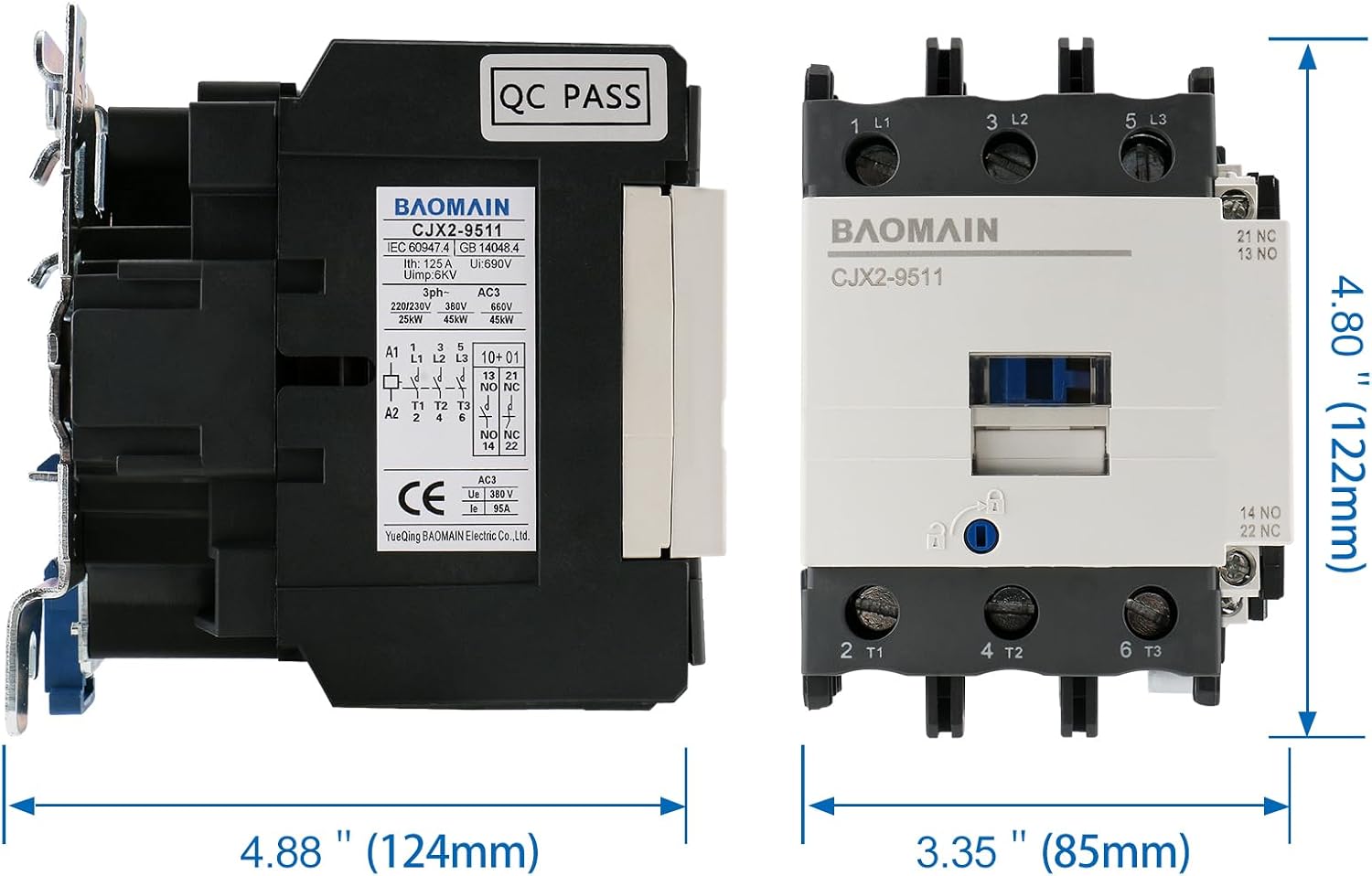

Industrial Performance AC Contactor - CJX2-9511The BAOMAIN CJX2-9511 is a professional-grade 3-pole AC contactor designed for heavy-duty electrical applications. It acts as a high-capacity switch for managing large electrical loads, primarily used for motor starting and power system isolation.Straightforward Installation and Wiring Logic:Coil Powering (A1/A2): These are the "brain" terminals. Connect your 220V control signal to A1 and A2 to engage the contactor's internal magnet.Main Power Circuit (L1-L2-L3 & T1-T2-T3): Connect your incoming 3-phase power lines to the top terminals (L1, L2, L3) and your motor or load wires to the bottom terminals (T1, T2, T3).Auxiliary Feedback (13/14 & 21/22): Use terminals 13-14 (NO) for remote status lights or PLC feedback when the contactor is closed. Use 21-22 (NC) for safety interlocks or emergency stop circuits.Mounting: The unit can be securely mounted onto a standard 35mm DIN rail or fixed directly to a control panel backplate using screws.Technical Parameters Summary:Model: CJX2-9511Coil Voltage: 220V AC, 50/60HzRated Current (Ie): 95A (at 380V AC-3)Conventional Thermal Current (Ith): 125AAuxiliary Contact: 1NO + 1NCMain Poles: 3 Phase

• HEAVY DUTY MOTOR CONTROL - Specifically designed for remote switching and controlling 3-phase AC motors with high-frequency operation, providing a reliable backbone for complex industrial automation systems.
• CERTIFIED INDUSTRIAL PROTECTION - This CE-marked contactor features a high insulation voltage (Ui) of 690V and a 6kV rated impulse withstand voltage (Uimp), ensuring safe operation under fluctuating power conditions and voltage spikes.
• HIGH CURRENT CAPACITY - Engineered to handle a rated operational current (Ie) of 95A at 380V (AC-3) and a thermal current (Ith) of 125A, delivering robust performance for heavy-duty machinery and power distribution loads.

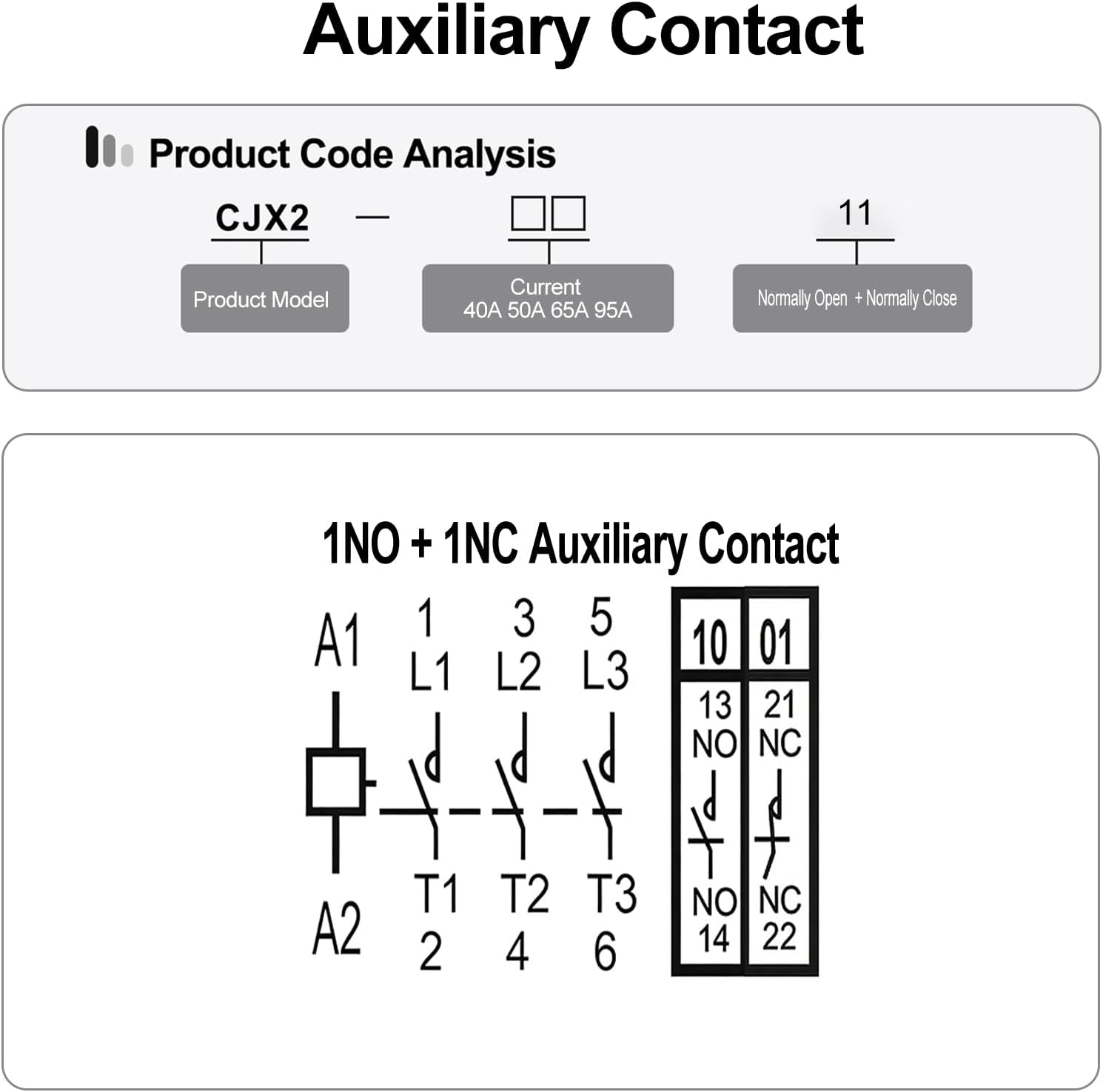

• VERSATILE AUXILIARY CONTACTS - Equipped with integrated 1NO (Normally Open) and 1NC (Normally Close) auxiliary contacts (13/14 and 21/22), allowing for seamless integration with status indicators, interlocking circuits, and control logic.
• SUPERIOR ARC EXTINGUISHING - Built with high-purity copper contacts and a precision-engineered internal structure to facilitate rapid arc extinguishing and minimize mechanical wear, extending the service life in harsh factory environments.
