Commercial Herb Grinder, Horizontal Continuous Feeding Hammer Mill Grinder & Pulverizer, 60-180 Mesh Fineness, 1-60kg/h, Water-Cooled 220V 3.5KW Pulverizer for Grain Spice Herbs Seasoning

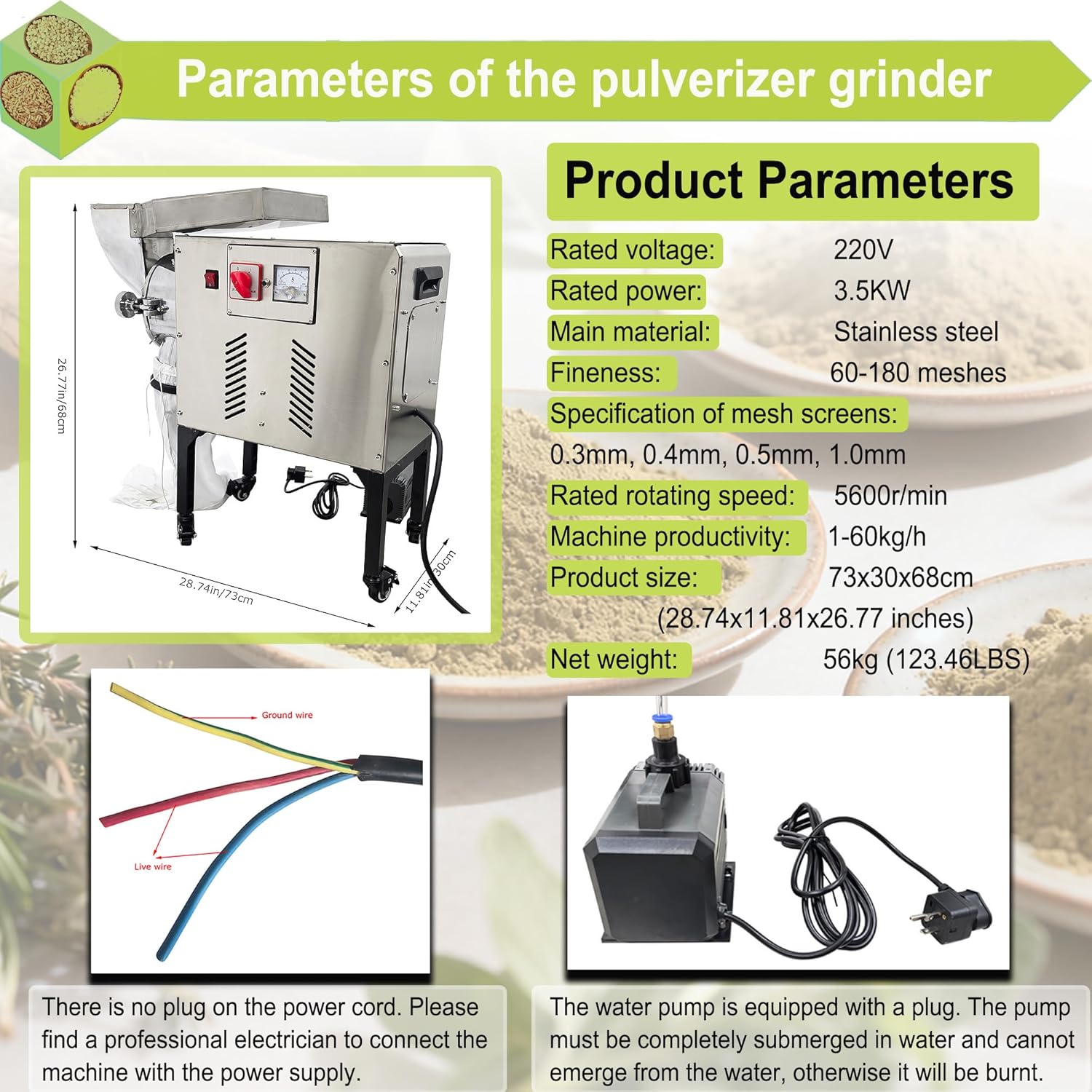

Hammer Mill Herb Grinder Horizontal Continuous Feeding Type Stainless Steel Pulverizer Grinder 220V Product Overview: The water cooling type stainless steel grinder is a professional machine for grinding various dry materials into uniform powder with the fineness of 60-180 meshes. The grinding teeth and pulverizing hammer heads in the grinding chamber are used to hammer and grind the raw materials so as to form fine powder. This machine adopts a continuous feeding mode, has the functions of overload protection, dual heat dissipation and dust-free collection. Product Parameters: Model: DF-60A Rated voltage: 220V Rated power: 3.5KW Main material: Stainless steel Fineness: 60-180 meshes Specification of mesh screens: 0.3mm, 0.4mm, 0.5mm, 1.0mm Rated rotating speed: 5600r/min Machine productivity: 1-60kg/h Product size: 73x30x68cm (28.74x11.81x26.77 inches) Net weight: 56kg (123.46LBS) Note: There is no plug on the power cord. Please find a professional electrician to connect the machine with the power supply. The water pump is equipped with a plug. The pump must be completely submerged in water and cannot emerge from the water, otherwise it will be burnt. Read carefully and understand all INSTRUCTIONS before operating the machine.Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item Included(170152): 1 x Horizontal Continuous Feeding Type Pulverizer Grinder 220V

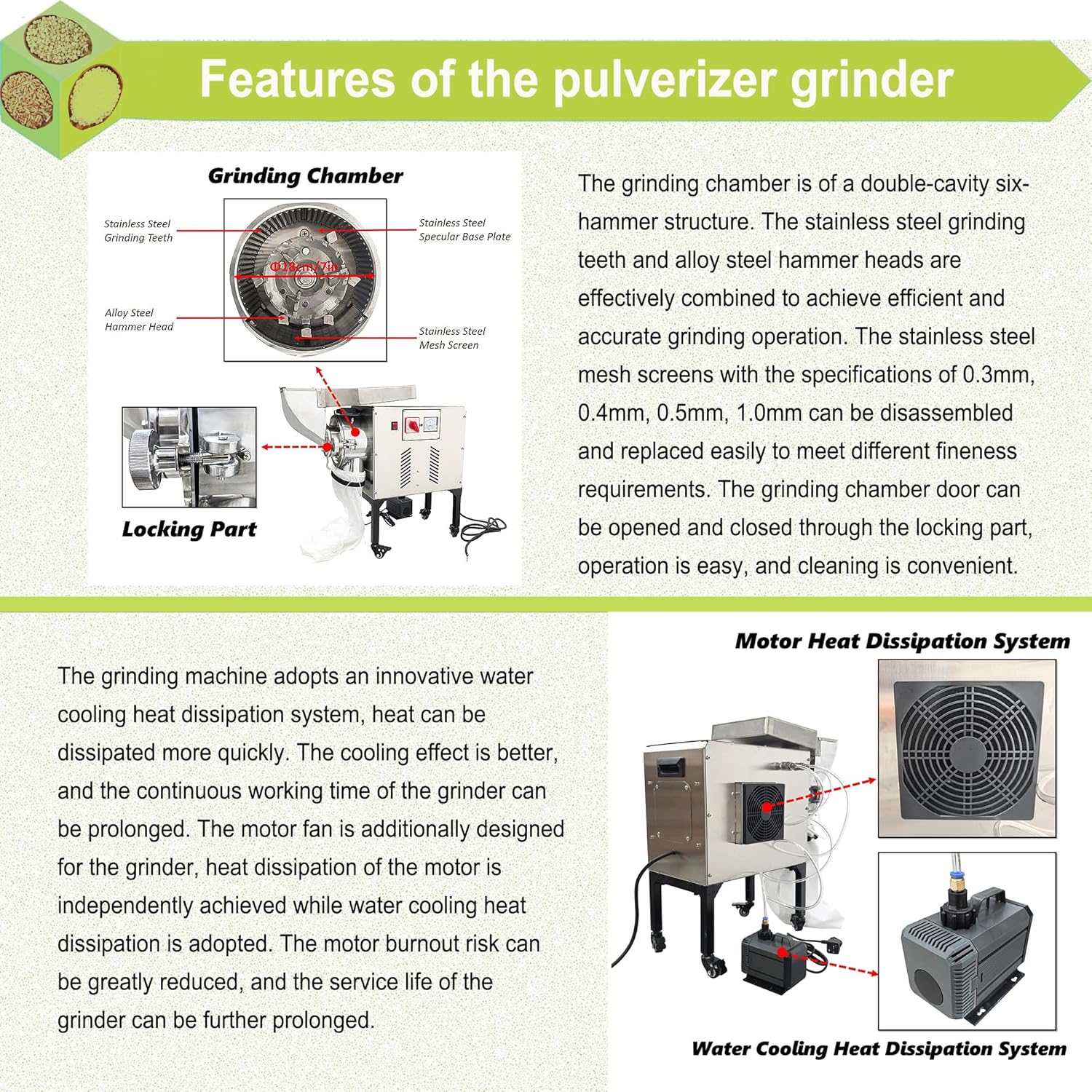

• [HORIZONTAL FEEDING HAMMER MILL WITH DUAL-CAVITY SIX-HAMMER STRUCTURE]- The commercial hammer mill pulverizer is with robust dual-cavity six-hammer structure, where stainless steel grinding teeth work in synergy with high-strength alloy steel hammer heads. The unique combination delivers aggressive hammering and shearing action, capable of pulverizing diverse dry materials into a perfectly uniform powder. It is an ideal solution for seasoning shops, clinics, and food processing facilities

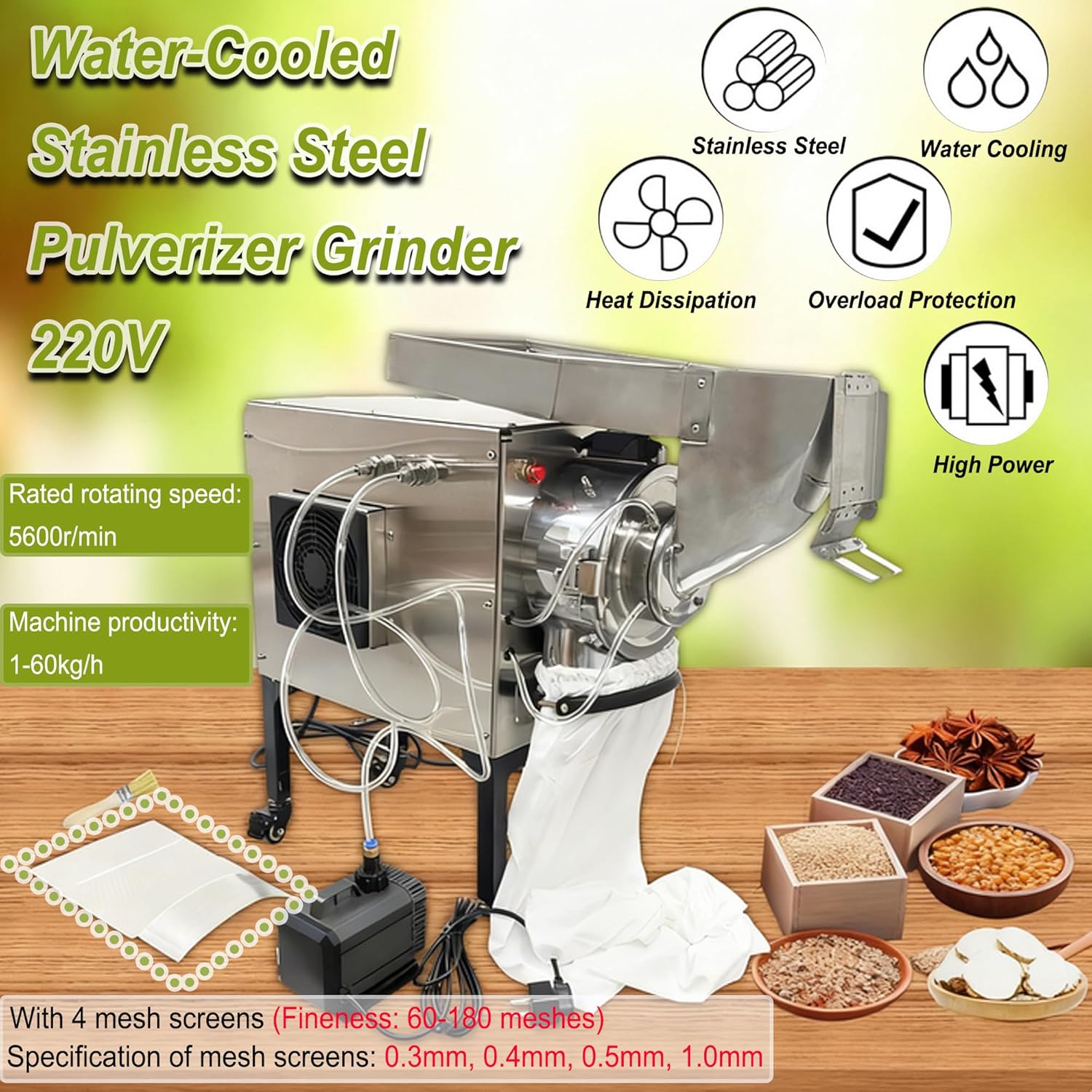

• [ADVANCED WATER-COOLED & FAN-COOLED SYSTEM FOR PROLONGED DUTY]- The stainless steel pulverizer is engineered with an innovative dual heat dissipation system. The primary water-cooling system circulates water to draw heat directly away from the grinding chamber, while an independent motor fan provides additional airflow. This dual approach ensures the machine maintains a safe operating temperature, greatly extending the motor's service life
• [PRECISION CONTROL AND OVERLOAD PROTECTION]- The integrated control panel features a clear ammeter, allowing you to monitor the machine's current in real-time. The most critical feature is the automatic overload protector, which instantly shuts down the machine if it is fed too quickly or jams. The function has an important role in protecting the grinder and ensuring the operating safety when the overload occurs. The control switch can be turned to start and stop the grinder easily
• [3.5KW COPPER MOTOR AND INERTIA ASSEMBLY]- Harness the stable and powerful driving force of a high-torque 3.5KW pure copper motor. Engineered with thickened copper core windings, this motor ensures reliable operation, offering quicker heat dissipation and superior durability. To further enhance its performance, we've integrated an inertia assembly. This assembly generates and stores kinetic energy during operation, effectively increasing the breaking force and acceleration of the hammers
• [EASY TO ASSEMBLE & OPERATE]- The support of the Stainless Steel Pulverizer Mill Machine is easy to disassemble and install. It can support the grinder steadily. Universal wheels with brakes are arranged at the bottoms of supporting legs. The grinder can be moved to different working sites and be fixed through the brakes. The adaptability and practicability are greatly enhanced. This grinding mill unit is both safe and simple to operate, effectively preventing user error and mechanical failure

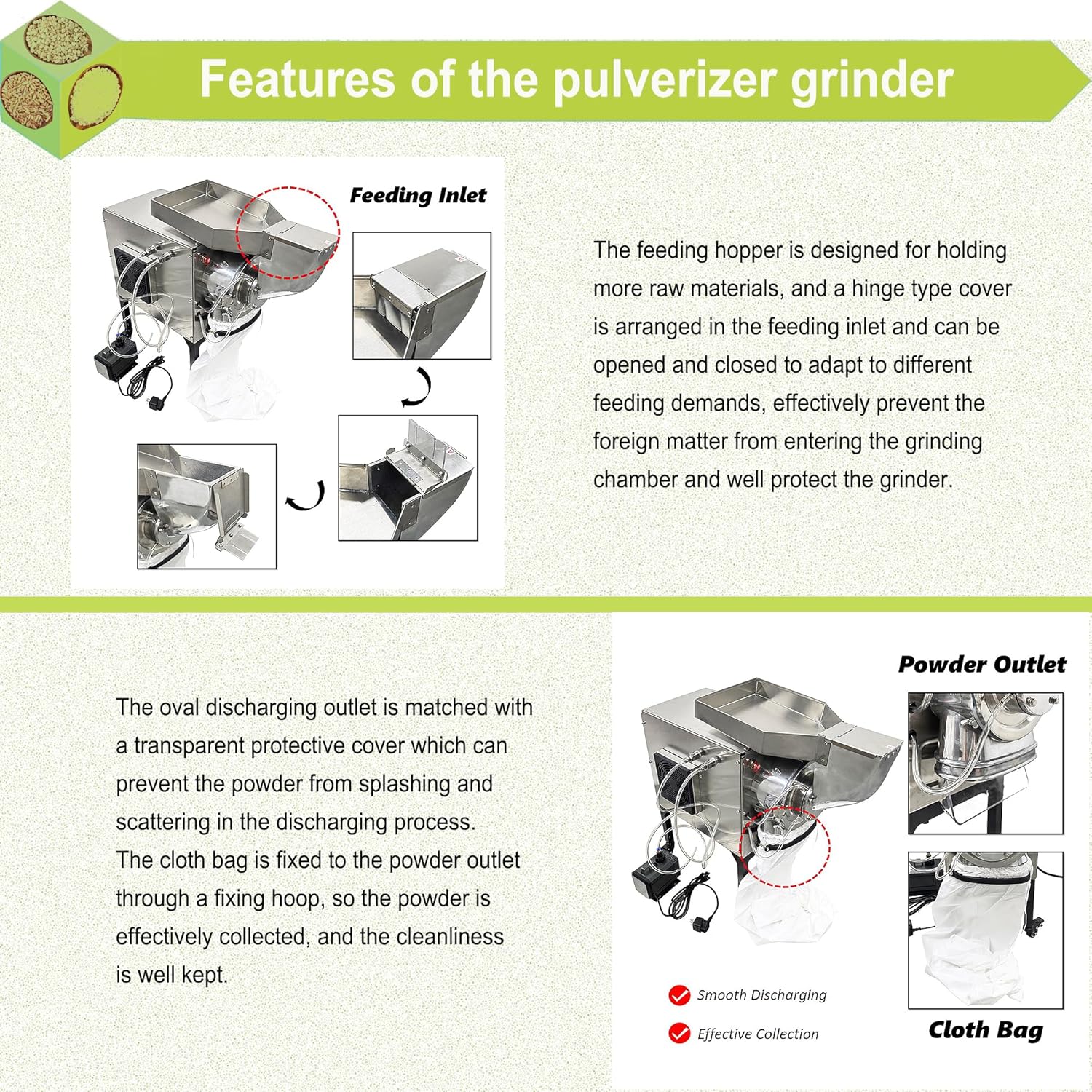

• [CUSTOMIZABLE FINENESS AND PRACTICAL DESIGN]- Achieve your desired powder fineness, from 60 to 180 meshes, with effortless flexibility. The grinder comes with four easily interchangeable stainless steel mesh screens (0.3mm, 0.4mm, 0.5mm, 1.0mm), allowing you to switch between different textures in seconds to suit various materials. The included cloth bag, secured with a fixing hoop, ensures a dust-free collection, keeping your workspace clean
• [NOTE]- In order to prolong the service life of the pulverizer, the machine should be turned on continuously for 2 hours, stopped for 30 minutes, and then restarted. The grinding chamber door features a simple locking mechanism for easy access, enabling quick cleaning and material changeover. The feeding speed should be slow, and the ammeter should be kept within 10A. Do not feed the materials too fast, otherwise the materials cannot be pulverized and discharged in time. Causing jam and stop
