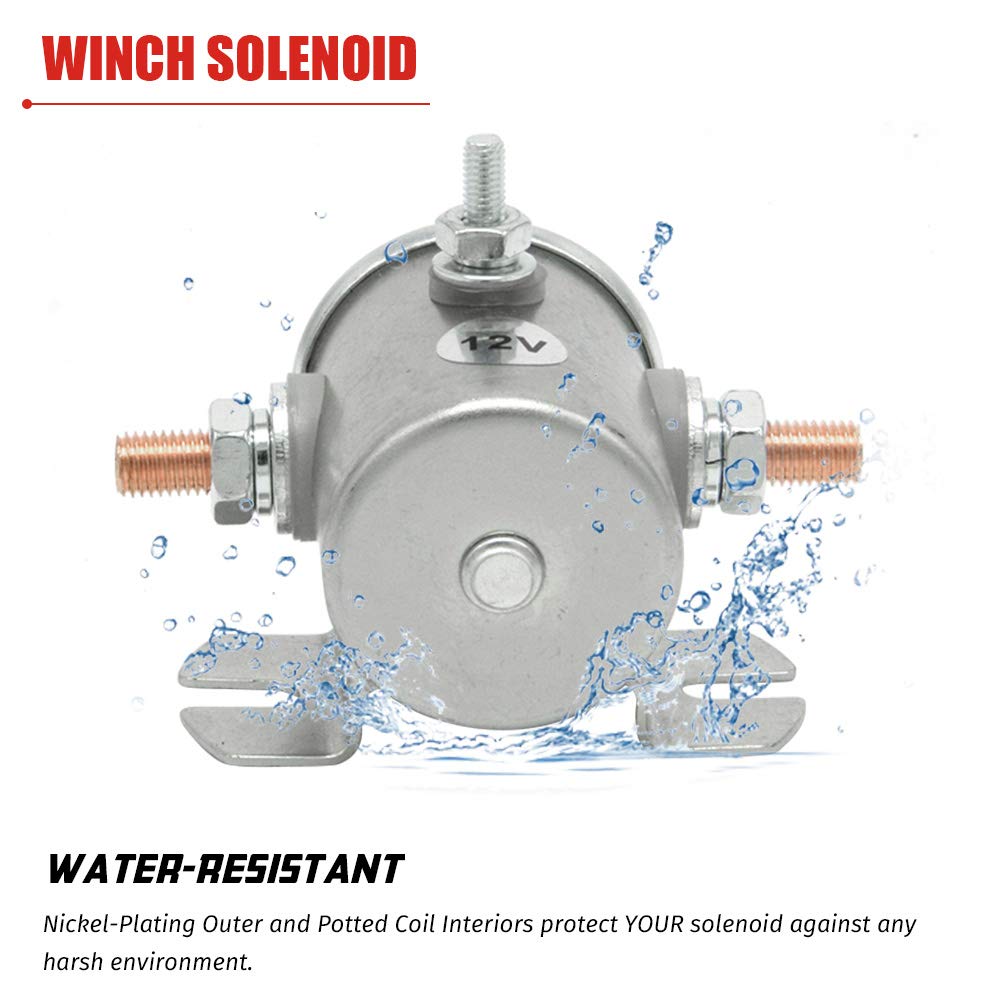

Continuous Duty Solenoid Relay 3 Terminal for Winch, Marine, Golf Cart SPST 12VDC Max 200A Replaces # 1114240, 1114241, 1114538, 97240-X, 70091714, 974-1215-10-16,934-1215-010-16
US$6.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.woodbury.org.au
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$6.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.woodbury.org.au
Free 30-day returns Details
Product details
| Management number | 228465710 | Release Date | 2026/05/31 | List Price | US$6.80 | Model Number | 228465710 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【High Quality】A ABIGAIL Continuous Duty Solenoid Relay is manufactured with premium quality components, the coil roll is using 180℃ copper wire, Zinc-Plating Outer and Potted Coil Interiors which against any harsh environment. 100% OEM Match and Replacement.
- 【OEM Parts Number】This Continuous Duty Solenoid Relay Replaces # 1114240, 1114241, 1114538 ,97240-X, 70091714, 974-1215-10-16, 934-1215-010-16, 934121501016, 934-1215-010 ,9341215010.
- 【Parameter】Voltage: 12VDC; Resistance: 14Ω; Capacity: 10.2W; Max Transient Flash Current: 200Amp; Continuous Working Current: Under 80Amp; Contact Studs: 5/16 -24 Studs Standard & Long; Bracket mounting: Holes 5/16 x 19/32 2-13/64 on Center.
- 【Application】Wiedly Used for Marine, Winch, Military Vehicles, Hydraulic Control Units, Golf Cart, Factory Machines. Attention: If it is the energizing circuit which is typically 16/18 Awg, suggest a 5amp fuse; If 10 Awg wire suggests 30 amp auto circuit breaker; If high output alternator, suggest an 8 AWG wire with a 50 Amp auto circuit breaker.
- 【Service】100% satisfaction guarantee, If you have any issues with the part, simply contact customer service for troubleshooting help, parts, replacement, or refund. Our aim is to make you satisfy the parts and the service we provide for you.
| ASIN | B08SVX1WBQ |
|---|---|
| Wattage | 10.2 watts |
| Brand Name | A ABIGAIL |
| Part Number | A5302C |
| Coil Voltage | 12 Volts |
| Contact Type | Spst |
| Manufacturer | A ABIGAIL |
| Mounting Type | Bracket Mount |
| Connector Type | Screw |
| Current Rating | 200 Amps |
| Operation Mode | Automatic |
| Coil Resistance | 14 Ohms |
| Contact Material | Copper |
| Specification Met | OEM |
| Number of Terminals | 3 |
| Maximum Switching Current | 30 Amps |
| Maximum Switching Voltage | 12 Volts |
| Minimum Switching Voltage | 12 Volts |
