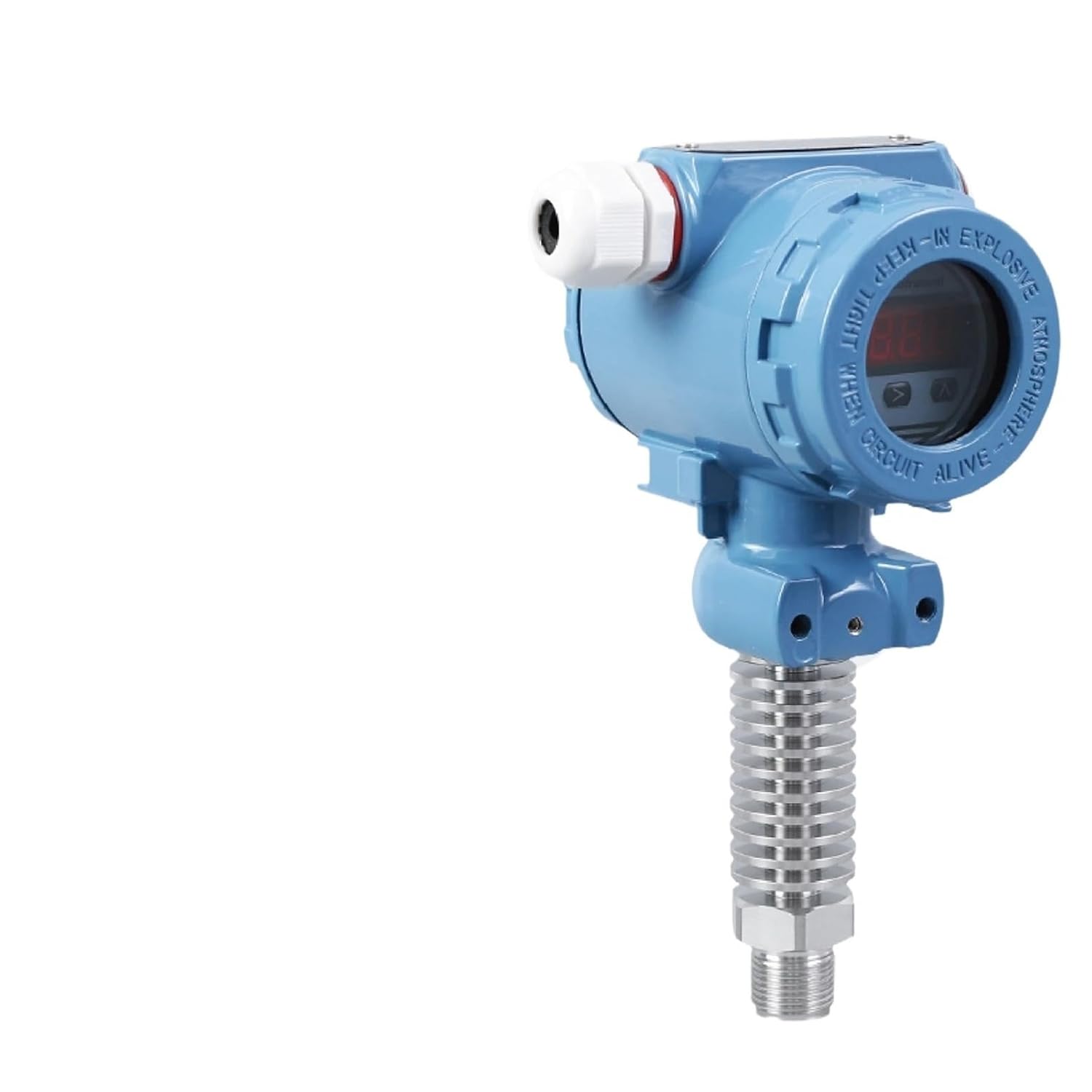

Digital Pressure Transmitter High Temp Industrial Sensor Steam Pressure Transducer 4-20mA Explosion Proof Gauge

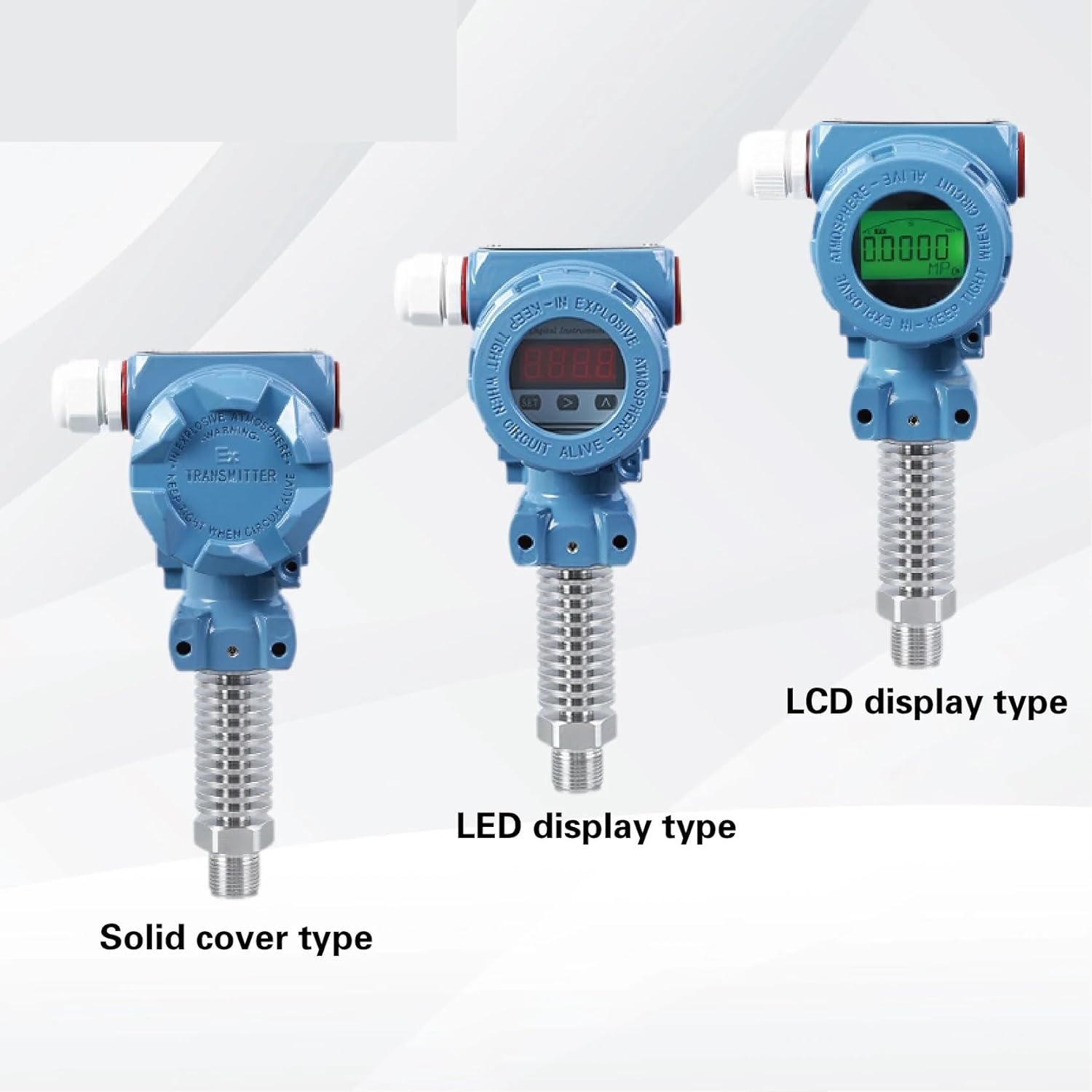

Due to page limitations, we are unable to list all available pressure ranges and corresponding units. However, any pressure range within -0.1 to 60 MPa does not affect the price. Supported pressure units include MPa, kPa, bar, psi, and kgf/cm². If the required pressure range or unit is not listed, please select any available range, along with the desired thread type and signal output, and place your order. Make sure to specify your required pressure range and unit (e.g., MPa, bar, psi) in the order notes. We will produce and ship the product according to your specified parameters. Thank you for your understanding!1.NOTE:Default Parameters:.LED digital display.Power:12-24VDC.Thread: G1/4.Output: 4-20mA.Temperature resistance: -20-250.Accuracy: 0.5%Customizable Parameters:.Measuring range: -100kPa to 100MPa (customizable).Optional models: Non-display type / LCD display type.Thread options: G1/2, NPT1/4, NPT1/2, M20*1.5.Output options: 0-10V, 0-5V, RS485.Accuracy: 0.2%2. ParametersParameterSpecificationPressure Range-100kPa~0 to 1kPa...100MPa (optional within range)Pressure TypeGauge pressure (default), Absolute pressureOutput Signal4-20mA (default), 0-5V, 0-10V, RS485Power Supply12~24VDCAccuracy0.5%FS (default), 0.2%FSCompensation Temperature-10~70°COperating Temperature-20~250°CZero Temperature Drift0.5%FS (MAX)Sensitivity Temperature Drift0.5%FS (MAX)Overload Capacity1.5 times the rated pressureMechanical Vibration20G (20-5000HZ)Sampling Rate20 times per secondLong-term Stability0.2%FS/yearThread ConnectionG1/4(customizable G1/2, M20*1.5etc.)Protection LevelIP65Compatible MediaFluids compatible with 316L stainless steelHousing MaterialLow-copper aluminum alloy, 316L stainless steel3.FeaturesHigh-Temperature Resistance Designed to operate in demanding environments with high temperatures.Multiple Output Options Supports 4-20mA, 0-5V, 0-10V, and RS485 to meet diverse application needs.Robust and Durable Stainless steel construction ensures long-term durability and resistance to harsh environments.High Accuracy & Stability 02FS accuracy available for precise measurement over time.Customizable Threads Various thread options (M20*1.5, G1/2, etc.) for easy installation.IP65 Protection Dustproof and water-resistant, suitable for outdoor and industrial4.ApplicationsConstant Pressure Water Supply Ensures stable water pressure in industrial and municipal applications.Hydraulic Systems Provides reliable pressure measurement for engineering hydraulics.Liquid Level Monitoring Suitable for measuring liquid levels in tanks and reservoirs.Energy Manufacturing Used in power plants and industrial energy production.5.FAQsQ1: Is this pressure transmitter suitable for high-temperature applications?A1:Yes, it is designed to operate in temperatures up to 250°C.Q2: Can I customize the thread connection?A2:Yes, we offer custom thread options such as G1/2, M20*1.5, etc.Q3: What is the accuracy of this pressure transmitter?A3:The default accuracy is 0.5%FS, with an optional high-precision 0.2%FS version.Origin : Mainland ChinaPressure Range : -100kPa-100MPaPressure Type : Gauge pressure (default), Absolute pressureOutput Signal : 4-20mA (default), 0-5V, 0-10V, RS485Power Supply : 12~24VDCOperating Temperature : -20-250°CThread Connection : G1/4 (customizable)Protection Level : IP65

• EWAIDI Digital Pressure Transmitter High Temp Industrial Sensor Steam Pressure Transducer 4-20mA Explosion Proof Gauge
