Little Giant WCR-9SS 115 Volt, 4/10 HP, 4800 GPH Automatic Outdoor Water/Seepage Collection and Removal System with Sewage Pump, 20' Piggyback Float Switch, Steel Cover, Green/Blue, 509082

Little Giant's WCR-9SS wastewater system is designed for the collection and removal of seepage water in areas with poor draining. The system consists of a 20" x 30" polyethylene basin with a steel cover. The discharge and electrical connections are made to run through the side of the basin. Once installed, no digging is required for servicing the system. The unit is equipped with schedule 40 PVC discharge piping with a pre-drilled air bleed hole and a full flow check valve. The unit is also equipped with a 2" bulkhead fitting to easily route power cords out of the basin. The WCR-9SS comes equipped with a 4/10 HP 9SC-CIA-RF sewage ejector pump with 20' cord. The pump features cast iron housing, cover, and volute which has a protective epoxy coating. Automatic operation is achieved by use of a piggyback mechanical float switch. The piggyback plug allows the unit to be switched to manual mode for maintenance or emergency water removal. This system does not come with a vent and designed for outdoor use only. FEATURES:- Pre-packaged 20" x 30" polyethylene basin with 4/10 hp sewage pump (assembly required)- Handles up to 2" solids- Steel cover- Includes schedule 40 PVC discharge piping with pre-drilled air-bleed hole- Designed with side outlets for discharge and electrical cords- Includes 2" bulkhead fitting to easily route power cords out of the basin- Once installed, no digging is required for system servicing- Molded inlet hub and anti-torque stops- Radial rib design for extra strength- Integrated anti-floatation collar

• WATER COLLECTION & REMOVAL SYSTEM: contains 20"x30" basin, steel lid, sewage pump with float switch, PVC discharge piping and elbows, check valve, gromet, and bulkhead fitting (assembly required)
• LITTLE GIANT 9SC-CIA-RF SEWAGE PUMP INCLUDED: 115-Volt, 60 Hz, 4/10 HP continuous duty permanent split capacitor (PSC) motor; thermally protected; CSA listed in the USA and Canada
• FEATURES: handles up to 2" solids; piping pre-drilled with air-bleed hole; side outlets for electrical cords; molded inlet hub; anti-torque stops; rib design for extra strength; outdoor use only
• AUTOMATIC OPERATION: equipped with a piggyback mechanical float switch; actives when liquid reaches between 9 and 14 inches; shuts off when liquid falls to between 2 and 6 inches

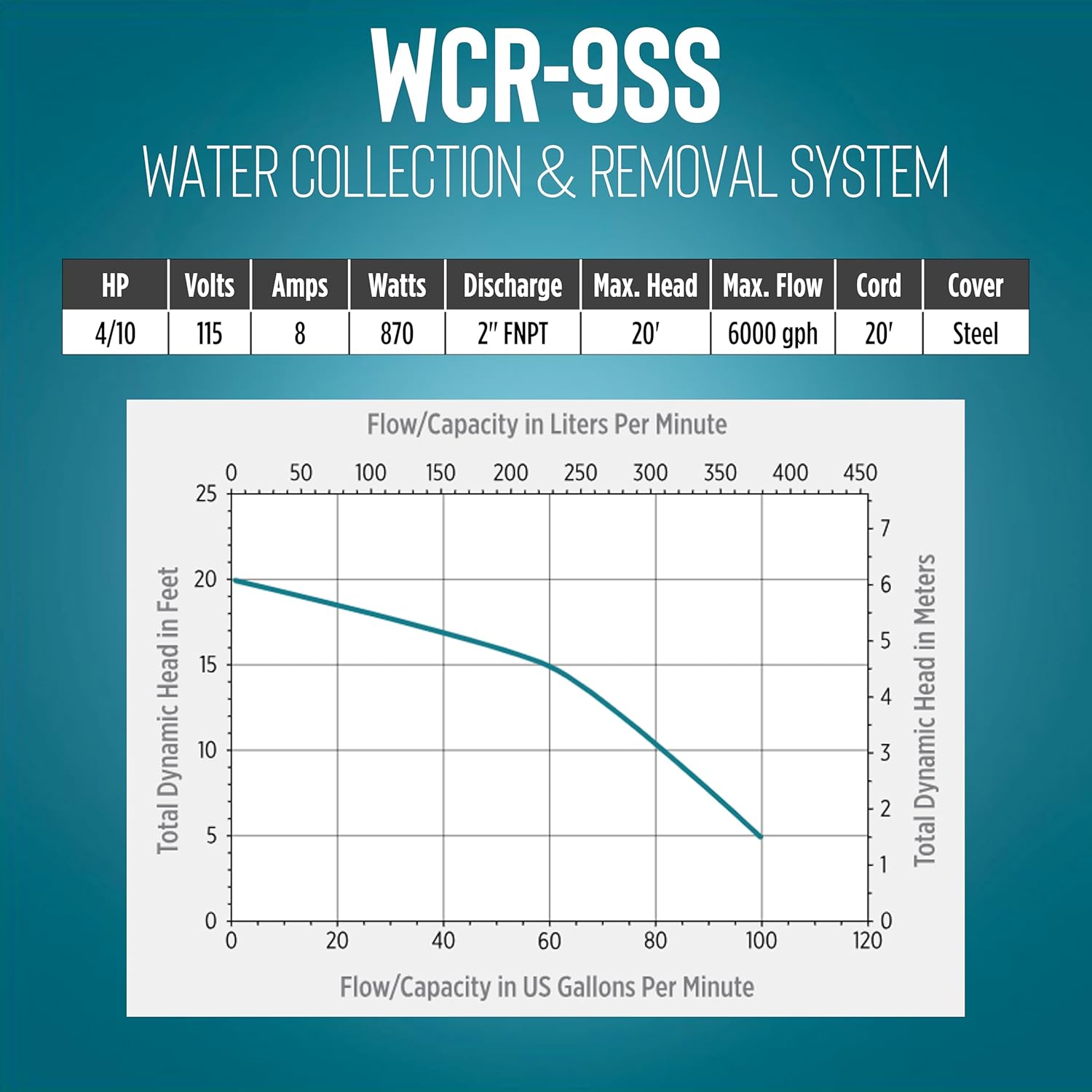

• SPECIFICATIONS: 2" discharge; 2" slip x slip check valve; delivers 6000 GPH at 5-ft. lift; 20-ft. shut-off; 8.7 PSI; 20-ft. cord; epoxy-coated cast iron cover/housing; nylon vortex-style impeller
