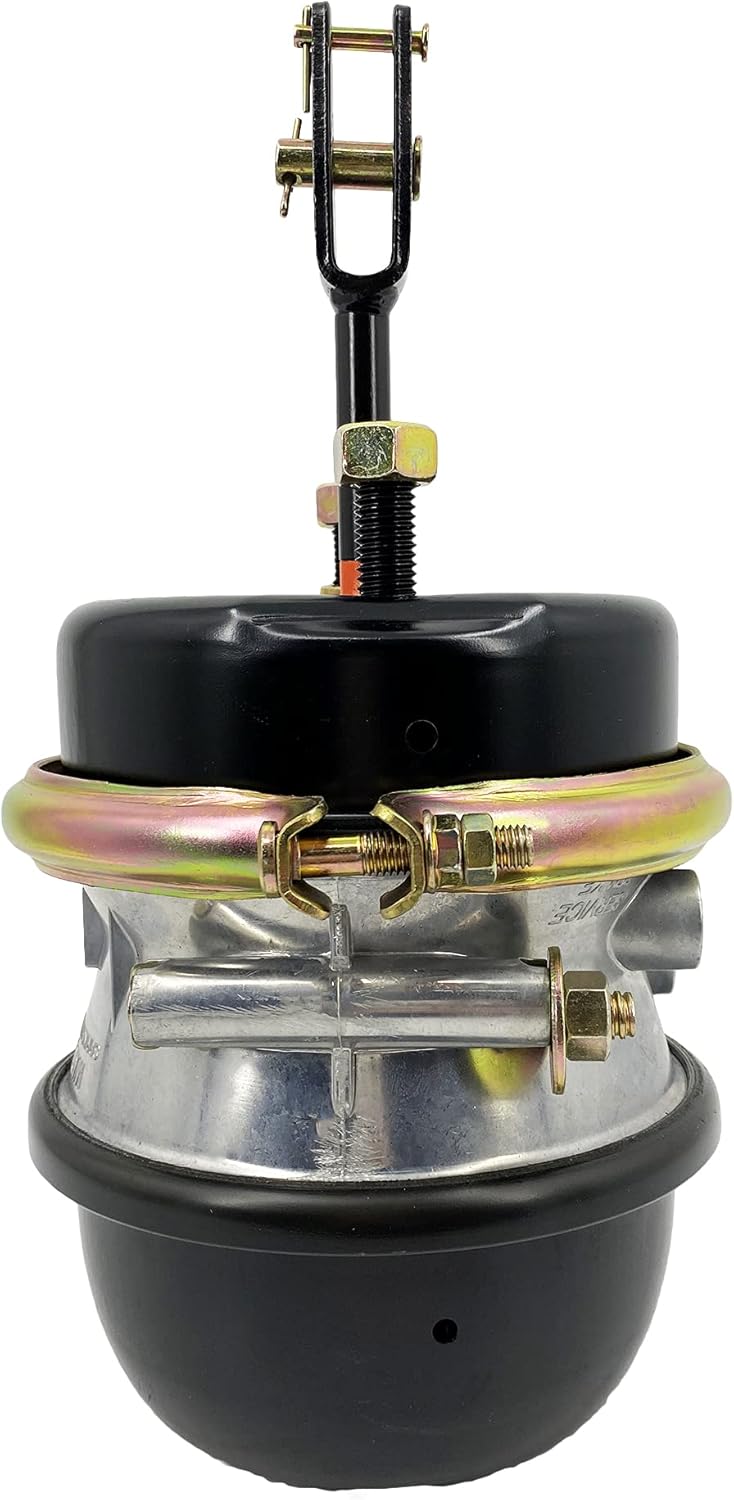

Torque Type 30/30 Air Brake Chamber Welded Clevis 2.5" Stroke Type 3030 for semi Truck Trailer (Replaces Bendix K067114 K129605 Haldex GC3030S4CW GC3030CW) (TR3030C-WC)
Product details
| Management number | 225143433 | Release Date | 2026/05/09 | List Price | US$25.99 | Model Number | 225143433 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- TYPE - Air Brake Chamber Type 3030 30/30 30 30 Welded Clevis
- REPLACEMENT - Bendix K129605 K067114 // Haldex GC3030CW GC3030S4CW // Other BTS-3030-WCR GTA-3030-WCR // Automann 179.SB3030SW1100
- SPECS - Actuator Type Size: 3030 // Stroke Type: Standard // Available Stroke: 2-1/2" // Length from mounting bracket to end of Spring Housing: 9" // Length of Piggyback: 6-13/16" // Dimension at rolled Spring Housing flange: 8-5/16" // Dimension at Service Clampband: 10-3/16" // Pushrod Length from face of Service Housing: 1" // Distance to Clevis Pin centerline from face of Service Housing: 2-1/4" // Weight: 21.3 lbs.
- FEATURES - Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue // Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life // World Class Diaphragm; High quality rubber compound, resistant to heat and cold // Rugged Service Housing; 9 gauge steel, powder coated // Self-piloting Dust Shield
- WARRANTY - 1-Year Unlimited Mile Warranty - includes assurances about the quality of the item, as well as a promise to provide replacement if something goes wrong within a set amount of time.
| ASIN | B085T1GHTC |
|---|---|
| Brand | Torque |
| Model | TR3030C-WC |
| Item Weight | 20 pounds |
| Manufacturer | Torque |
| OEM Part Number | Automann 179.SB3030SW1100, Bendix K129605 K067114 Haldex GC3030CW, Haldex GC3030S4CW Other BTS-3030-WCR, Other GTA-3030-WCR |
| Item model number | TR3030C-WC |
| Product Dimensions | 18 x 9 x 9 inches |
| Manufacturer Part Number | TR3030C-WC |
