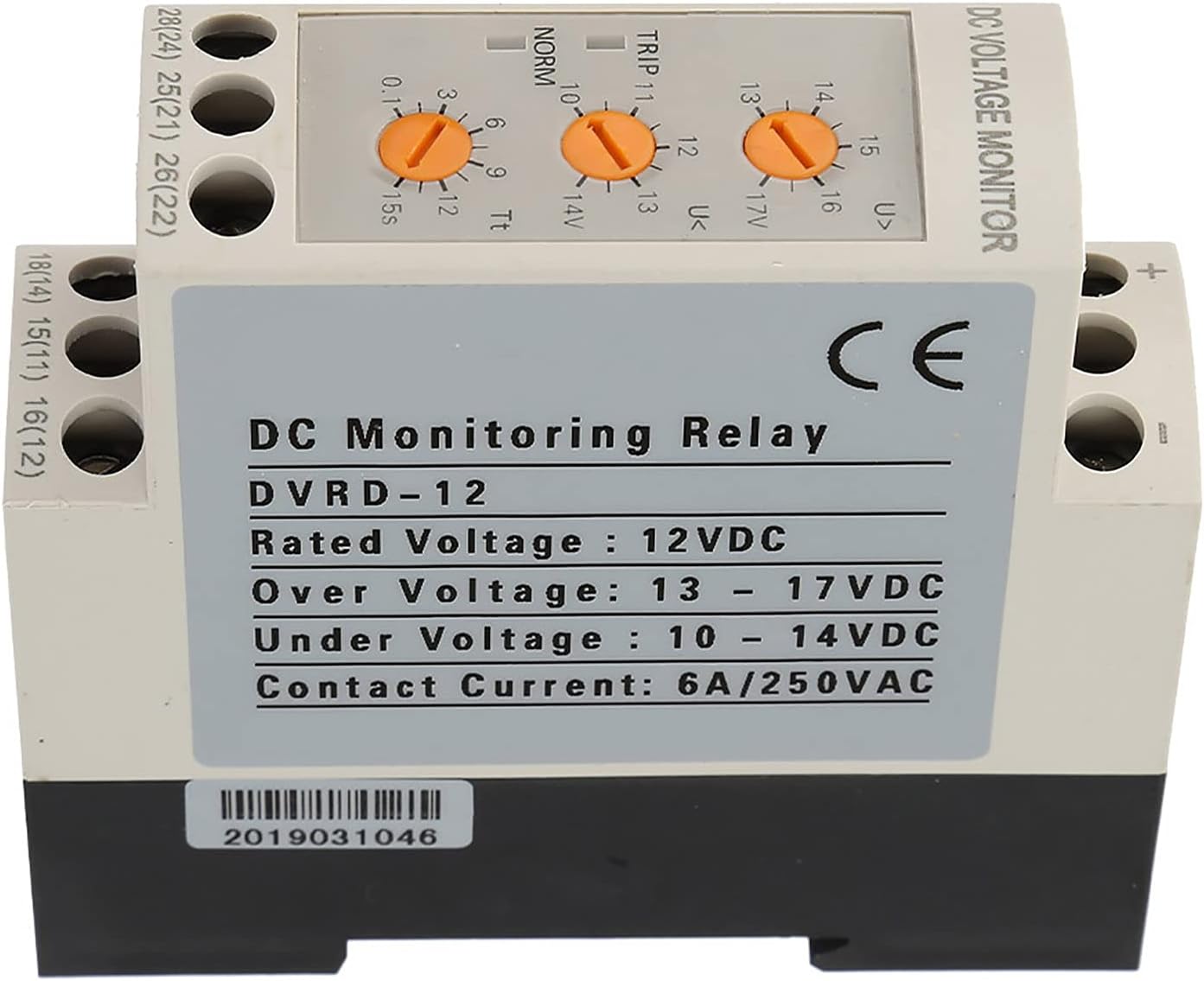

YWBL-WH Voltage Monitoring Relay Over-Voltage and Under-Voltage Relay 35MM Rail 13-17V 10-14V(DC12V)
Product details
| Management number | 226279494 | Release Date | 2026/05/09 | List Price | US$10.04 | Model Number | 226279494 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ✈ Product Name: Voltage Monitoring Relay; function: over voltage, under voltage; Rated voltage: DC 12V/24V/36V/48V; Overvoltage regulation range: 13-17v; Undervoltage adjustment range: 10-14v; capacity: 6A 250VAC (resistivity).
- ✈ Main Features: The voltage monitoring relay is of 2 sets of normally open and normally closed contacts, 2 indicator lights indicate various working conditions, no additional auxiliary power supply is required.
- ✈ Real Time Monitoring: The voltage monitoring relay could achieve real-time monitoring of dc overvoltage and undervoltage faults, and over-voltage, under-voltage value, and action time can be adjusted.
- ✈ 35mm Rail: With 35mm rail and standard modular structure, the voltage monitoring relay is easy to install, easy to operate.
- ✈ Typical Applications: The voltage monitoring relay is typically applied in dc motor, battery, UPS power supply, dc switchgear, dc panel, industrial control system.
| UPC | 748018730044 |
|---|---|
| ASIN | B07QDW3BDR |
| Model | YWBL-WHamgsv40wqb-01 |
| Wattage | 72 watts |
| Brand Name | YWBL-WH |
| Unit Count | 1.0 Count |
| Part Number | YWBL-WHamgsv40wqb-01 |
| Coil Voltage | 12 Volts |
| Contact Type | Normally Closed, Normally Open |
| Manufacturer | YWBL-WH |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 6 Amps |
| Operating Time | 15 Seconds |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Included Components | inc |
| Contact Current Rating | 6 Amps |
| Maximum Switching Current | 6 Amps |
| Minimum Switching Voltage | 12 Volts |
